Crane hnyav railyog ib qho tshwj xeeb, muaj zog steel khiav system tsim los pab txhawb thiab coj cov kev lag luam hnyav cranes (xws li nyiaj siv ua haujlwm gantry cranes hauv cov chaw tsim khoom lossis nkoj - mus rau - ntug dej hiav txwv cranes hauv cov chaw nres nkoj) rau cov kab rov tav txav, tsis zoo li cov qauv kev tsheb ciav hlau rau cov tsheb ciav hlau, muaj qhov tshwj xeeb profile (wide taub hau, thicker lub vev xaib) txhawm rau ua haujlwm hnyav, muaj zog, muaj zog thiab muaj kev cuam tshuam. nres- pib voj voog, ua kom ruaj khov, ruaj khov khoom tuav.
Dab tsi yog crane rails ua los ntawm?
Crane rails feem ntau yog tsim los ntawm siab - lub zog, hardened carbon thiab alloy steels, tshwj xeeb tshaj yog tsim rau hnyav loads, featuring siab manganese cov ntsiab lus (xws li U71Mn los yog U75VX qib) rau superior coj kuj thiab hardness, kom ruaj khov thiab durability nyob rau hauv xav tau kev lag luam ib puag ncig.
Cov ntaub ntawv tseem ceeb & Khoom
- High Carbon Steel: Muab qhov tseem ceeb hardness los tiv thaiv hnav los ntawm crane log.
- Manganese (Mn): Ntxiv los txhim kho hardness, lub zog, thiab hnav cov khoom, nrog cov ntsiab lus zoo li ntawm 1.1% mus rau 1.5% hauv qib zoo li U71Mn.
- Alloy Steels: Tsawg- alloy steels nrog cov ntsiab lus xws li Manganese (Mn) thiab Silicon (Si) txhim kho hnav thiab tiv thaiv corrosion.
- Killed Steel: Lub siab- steel zoo (feem ntau los ntawm qhib-hearth smelting) nrog tswj cov ntsiab lus roj, tiv thaiv qhov tsis xws luag xws li tawg thiab npuas kom txhim kho kev nyab xeeb thiab kev ua haujlwm.
| Qib Steel | C(%) | Si | Mn | Cr | V | P | S | Tensile zog (Rm / MPa) |
|---|---|---|---|---|---|---|---|---|
| ua 71mn | 0.65~0.76 | 0.15~0.58 | 0.70~1.40 | – | – | Tsawg dua lossis sib npaug li 0.035 | Tsawg dua lossis sib npaug li 0.030 | Ntau dua lossis sib npaug rau 880 |
| U75V | 0.71~0.80 | 0.50~0.80 | 0.75~1.05 | – | 0.04~0.12 | Tsawg dua lossis sib npaug li 0.035 | Tsawg dua lossis sib npaug li 0.030 | Ntau dua lossis sib npaug li 980 |
| ua 78crv | 0.72~0.82 | 0.50~0.80 | 0.70~1.05 | 0.30~0.50 | 0.04~0.12 | Tsawg dua lossis sib npaug li 0.035 | Tsawg dua lossis sib npaug li 0.030 | Ntau dua lossis sib npaug rau 1080 |
| U77MnCr | 0.72~0.82 | 0.10~0.50 | 0.80~1.10 | 0.25~0.40 | – | Tsawg dua lossis sib npaug li 0.035 | Tsawg dua lossis sib npaug li 0.025 | Ntau dua lossis sib npaug li 980 |
| ua 76kr | 0.71~0.81 | 0.50~0.80 | 0.80~1.10 | 0.25~0.35 | 0.04~0.08 | Tsawg dua lossis sib npaug li 0.035 | Tsawg dua lossis sib npaug li 0.025 | Ntau dua lossis sib npaug rau 1080 |
Cov Qib & Cov Qauv
- U71Mn: Tus qauv siv dav dav rau cov crane rails (piv txwv li, QU70, QU80, QU100, QU120), nrog QU qhia lub taub hau dav hauv mm.
- DIN 536: Tus qauv European qhia cov qib kev tsheb nqaj hlau (xws li Qib 1, 2, 3) rau qhov sib txawv ntawm cov peev txheej.
Manufacturing & Tsim
- Kub Rolling: Cov txheej txheem siv los tsim cov ntsia hlau, ua rau lub ntsej muag du, ruaj khov.
- Cov Duab Tshwj Xeeb: Tsim los nrog dav flanges (soles) rau kev ruaj ntseg tiv thaiv ntsug thiab kab rov tav.

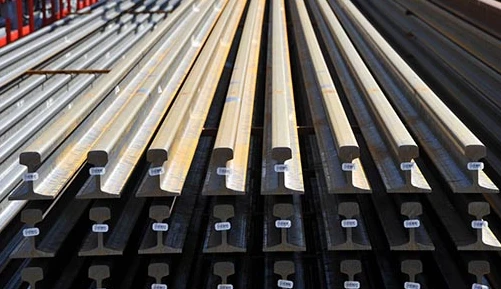

GNEE RAIL Supply Ntau Ntau ntawm Crane Rails
Ntxiv nrog rau Suav tus qauv crane rail, peb kuj muab ntau hom kev tsheb ciav hlau cov khoom hauv qab no lwm cov qauv hauv tebchaws.
| Crane Rail Hom | Txuj | Loj | Khoom siv | Txheem Length |
|---|---|---|---|---|
| QU Series | Suav YB/T 5055-2014 |
Q70, Q80, QU100, QH 120 |
U71Mn, U75V | 12m |
| Ib Series | German DIN536 |
A45, A55, A65, A75, A100, A120, A150 |
50mn,71mn ua | 10/12/15m |
| ASCE Series | Neeg Asmeskas ASTM, AREMA |
ASCE25, ASCE40, ASCE60, ASCE 75, ASCE 85, ASCE 90, ASCE 115, ASCE 136 |
700/900A/1100 | 6-12m, 12-25m |
| UIC Series | International Union ntawm Railways UIC860-0, EN-13674-1 |
UIC50, UIC54, UIC60 | 900A/1100 | 12-25m |
| BS Series | Askiv IB 11-1985 |
BS50'O', BS 60A, BS60R, BS75A, BS75R, BS80A, BS100A, BS113A, IB |
700/900A | 8-25m |
| JIS Series | Nyiv JIS E1103/1101 |
15kg, 22kg, 30A, 37A, 50N, Qauv: CR73, CR100 |
Raws li JIS | 9-10m |
| AS Series | Australian TIAB SA 1085 |
31kg, 41kg, 47kg, 50kg, 53kg, 60kg, 66kg, 68kg, 73kg, 1; 89kg |
900A/1100 | 8-25m |
| ISCOR Series | South African ISCOR |
15kg, 22kg, 30kg, 40kg, 48kg, 57kg |
700/900A | 9-25m |
Txij xyoo 2008,GNEE RAILtau muab steel rails ntawm cov qib sib txawv rau ntau tshaj 18 xyoo, steel rails los ntawm GNEE yog heev recommened nyob rau hauv Tuam Tshoj thiab txawv teb chaws.Wtih txiav ntug khoom, GNEE ua tau zoo steel rails uas tau raws li cov kev cai ntawm feem ntau lub teb chaws. Standard rail, lub taub hau hardened rail, hnyav rail, lub teeb rail, crane rail thiab lwm yam yog tag nrho cov muaj nyob ntawm no, raws li ib tug ntawm cov Tuam Tshoj lub ntsiab rail tsum, GNEE RAIL tau ua hauj lwm rau muab kev lag luam ntsuab railway khoom thoob plaws lub ntiaj teb no.
| Kev faib tawm | Qhov siab (mm) | Lub taub hau (mm) | Hauv qab (mm) | Thickness (mm) | Qhov hnyav (kg / m) | |
| Lub Teeb Rail | 8 KG / M | 65 | 25 | 54 | 7 | 8.42 |
| 9 KG / M | 63.5 | 32.1 | 63.5 | 5.9 | 8.94 | |
| 12 KG / M | 69.85 | 38.1 | 69.85 | 7.54 | 12.2 | |
| 15 KG / M | 79.37 | 42.86 | 79.37 | 8.33 | 15.2 | |
| 18 KG / M | 80 | 40 | 80 | 10 | 18.06 | |
| 22 KG / M | 93.66 | 50.8 | 93.66 | 10.72 | 22.3 | |
| 24 KG / M | 107 | 51 | 90 | 10.9 | 24.46 | |
| 30 KG / M | 107.95 | 60.33 | 107.95 | 12.3 | 30.1 | |
| Heavy Rail | 38 KG / M | 134 | 68 | 114 | 13 | 38.733 |
| 43 KG / M | 140 | 70 | 114 | 14.5 | 44.653 | |
| 45 KG / M | 145 | 67 | 126 | 14.5 | 45.546 | |
| 50 KG / M | 152 | 70 | 132 | 15.5 | 51.514 | |
| 60 KG / M | 176 | 73 | 150 | 16.5 | 60.64 | |
