Daim ntawv tag nrho ntawm ECR hauv kev tsheb ciav hlau yog dab tsi?
Hauv kev tsheb ciav hlau, ERC sawv rauElastic Rail Clip, ib qho tseem ceeb tivthaiv siv los fasten rails rau sleepers (ties), muab clamping quab yuam, kev co kuj, thiab longitudinal stability rau kev nyab xeeb thiab npaum lub tsheb ciav hlau, tshwj xeeb tshaj yog nyob rau hauv niaj hnub qhob qhob sleeper systems.
Lub luag haujlwm tseem ceeb:
- Kev ruaj ntseg Rails: Tuav lub tsheb ciav hlau ko taw khov kho tiv thaiv tus neeg tsaug zog.
- Resistant Forces: Withstands vibrations, lateral, ntsug, thiab longitudinal (creep) rog.
- Kev ruaj ntseg ruaj khov: Ua kom txoj kev sib tw thiab ruaj khov, txawm tias nyob rau hauv qhov hnyav hnyav thiab kev kub ceev.
Dab tsi yog kev ua haujlwm ntawm rail clip?
Txoj kev tsheb ciav hlau txhawb nqa tsheb thiab kho rau txoj kev tsheb ciav hlau pw tsaug zog los ntawm txoj kev tsheb ciav hlau fastening. Raws li lub hauv paus tseem ceeb ntawm kev tsheb ciav hlau fastening system, khoov thiab distortion ntawm rail clip yuav tsim crimping quab yuam ntawm txoj kev tsheb ciav hlau, uas ua kom ntseeg tau qhov kev sib txuas ntawm kev tsheb ciav hlau thiab ua kom muaj kev ncaj ncees ntawm kev tsheb ciav hlau. Tsis tas li ntawd, kev sib cuag ntawm lub tsheb thiab kev tsheb ciav hlau yuav ua rau muaj kev vibration, cov qauv elastic ntawm kev tsheb ciav hlau tuaj yeem nqus tau lub zog cuam tshuam thaum lub tsheb ciav hlau ua haujlwm, txo qhov kev poob siab. Lub elastic rail clip ua haujlwm nyob rau hauv qhov rov ua dua kev ntxhov siab. Nws dais ntau yam teebmeem xws li khoov, torsion, qaug zog thiab corrosion. Thaum lub tsheb hla, nws kuj dais siab heev instantaneous cuam tshuam load.
Dab tsi ntawm Rail Clips feem ntau siv?
Ntau yam kev tsheb ciav hlau clips yog siv raws li qhov xav tau thiab cov xwm txheej nrog txhua qhov kev hloov pauv uas muab cov txiaj ntsig sib txawv raws li qhov sib txawv ntawm kev tswj hwm thiab kev khiav tsheb ciav hlau.

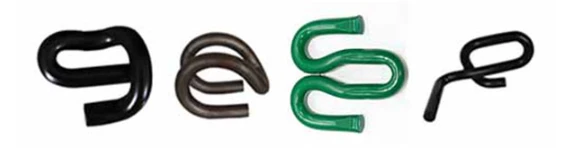

Elastic Rail Clips
Rail clips paub txog lawv qhov yooj yim thiab muaj peev xwm nqus cov rog uas tsim los ntawm cov tsheb ciav hlau hla yog elastic rail clips. Lawv raug lees paub rau lawv qhov damping ntawm vibrations thiab suab nrov theem uas ua rau lawv zoo meej rau siab - kev tsheb ciav hlau ceev.
SKL Rail Clips
SKl rail clips khav theeb tus qauv tsim uas lav kev ruaj ntseg tuav thiab feem ntau ua haujlwm nyob rau hauv qhov chaw xav tau kev ruaj ntseg, zoo li khoov thiab junctions.
KPO Rail Clips
Rail clips los ntawm KPO muab ib txoj hauv kev zoo rau kev ceev cov tsheb ciav hlau kom ruaj ntseg hauv qhov chaw nrog kev yooj yim ntawm kev teeb tsa thiab kev tu kom zoo rau kev ua tau zoo nyob rau hauv ib puag ncig kev tsheb ciav hlau.
Deenik Rail Clips
Deenk rail clips sawv tawm rau lawv cov qauv tsim ua kom muaj kev txhim kho sai thaum tswj xyuas qhov ruaj khov zoo ib txwm siv hauv cov xwm txheej uas xav tau kev teeb tsa nrawm lossis kev ua haujlwm tu.
PR Rail Clips
Rail clips nrog ib tug tensioned tsim yog feem ntau ua hauj lwm nyob rau hauv hnyav thauj railway systems kom paub meej tias txoj kev sib raug zoo nyob ruaj khov txawm tias muaj ntau yam loads tam sim no.
Nabla Rail Clips
Rail clips los ntawm Nabla muab ib qho kev hloov pauv nrog rau lub zog tuav lub zog uas ua rau lawv hloov kho me ntsis hauv kev khiav thaum ua kom ruaj khov, nyob rau hauv qhov chaw.
| Rail Clip Hom | Rail Clip Specification | Khoom siv | |||||||
| E Clip | E1609 | E1809 | E1817 | E2001 | E2006 | E2009 | E2055 | E2056 | 60Si2Mn, 60Si2CrA, 50Si7 |
| SKL clip | SKL 1 | SKL 2 | SKL 3 | SKL 12 | SKL 14 | SIB 75 | |||
| W Clip | Deenik Clip | Fast Clips | Russia Clips | Suav Clips | |||||
| Crane Rail Clip | Gantrail Clips | Q235, | |||||||
| KPO 1 | KPO 3 | KPO 6 | KPO 9 | 9116, 9120, 9216, 9220, thiab lwm yam | Gantrex Clips | Q345 | |||
| Muaj nrog ntau hom kev sib dhos ntawm lub xub pwg nyom. Lwm configurations muaj raws li qhov kev thov. | |||||||||
Qhov hnyav ntawm txoj kev tsheb ciav hlau yog dab tsi?
Railroad clips (los yog elastic rail clips) sib txawv ntawm qhov hnyav los ntawm hom, feem ntau yog li ntawm 0.3 kg (0.66 lbs) mus rau ntau tshaj 1 kg (2.2 lbs) ib thooj, nyob ntawm lawv txoj kab uas hla (14mm txog 20mm +) thiab tsim, nrog ntau hom xws li E-clips hnyav txog 0.8kg. Piv txwv li, Ø16mm clip yuav hnyav 0.43-0.44kg, thaum loj Ø20mm clip yuav yog 0.76-0.80kg.
GNEE RAILraws li qhov loj tshaj plaws rail clip thiab clamp ntau lawm puag nyob rau hauv Tuam Tshoj, uas tau tsim nyog rau kev sib tw nruab nrab thiab loj scaled railway tej yaam num. Tsis tas li ntawd, GNEE RAIL tau pom zoo elastic rail clip chaw tsim tshuaj paus los ntawm Tuam Tshoj txoj kev tsheb ciav hlau Ministry thiab tau ISO9001-2008 tau ntawv pov thawj. Peb cov khoom siv tsheb ciav hlau yog qhov zoo tagnrho rau kev tsheb ciav hlau sib dhos rau qhov zoo ntawm kev yooj yim haum thaum taug kev; kev txuag nyiaj txiag; ntev durability thiab lifespan; hloov ceev ceev.
