A Rail Fastening System, Kuj tseem hu ua Rail Fastening, Rail Bastener, Railway SHRESSURING SYSTEMS, nws yog siv los txhim kho cov hlua pw lossis cov tsheb ciav hlau, uas feem ntau muajkev sib tw, Tsheb nqaj hlau, Railroad khi daim hlau, cov rooj zaum, cov rauv ceev,aub spikes, Ntsia Hlau Ntaus, Taug Bolts, thiab lwm yam. Kev xaiv ntawm kev saib xyuas nrawm nrawm yuav tsum ua nrog kev saib xyuas rail kev nyab xeeb tsis tuaj yeem ua tau.
E {- clip Rail Rail Rail Rail Force
Kev tsis muaj ib chav ntawm cov tsheb ciav hlau Fastening
| Cov khoom suav nrog | Qho ntau | Khoom | Qhov loj | Hais txog |
|---|---|---|---|---|
| E clip | 2 | 60si2mna, 60SI2CRA | Dia . 16 hli, 18mm lossis 20mm (E1809, E2006, E2007, E2009, ETC | Hardness: 44-48hrc |
| Ntiv kev thauj khoom: Dia.16mm: 500-700kgf; Dia.18mm: 750-900KGF; Dia.20mm: 1100-1400KGF | ||||
| Qaug zog lub neej: 5 lab mus ncig ua si tsis muaj tawg | ||||
| Txheem: DIN17221, BS970, GB / T1222 | ||||
| Lub xub pwg | 2 | Qt500-7, Qt450-10 | RauUIC54, Uic60, 115re, BS80LBS, BS100LBS, 50kg Rail, 60kg Rail, thiab lwm yam. | Nco tseg: Hardness ntawm e {-} clip yog 44 - 48rc; Ntiv kev thauj khoom rau e -} clip yog 500- 700kgf (dia.16mm); 750-900KGF (Dia.18mm); 1100-1400KGF (Dia.20mm); Kev qaug zog lub neej ntawm e-clip yog 5 lab cycles tsis muaj tawg DIN17221, BB / T1222 tsim nyog e-clip |
| Rail pad | 1 | HDPE, Roj Hmab lossis EMA | ||
| Tshuaj insulator | 2 | Kev Pab Txog Nylon 66 (PA66) |

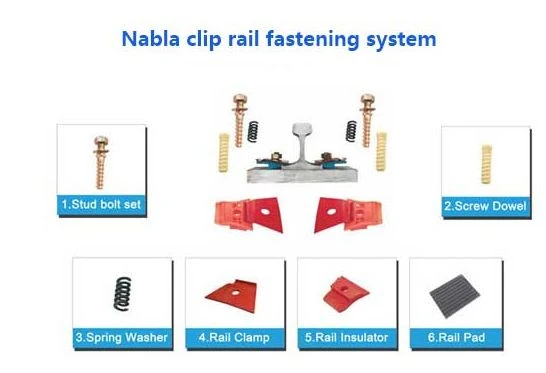

Nab Npab Rail Rail Fastening System
Kev tsis rau ib chav ntawmNab Npab Rail Rail Fastening System
| Nabla clip | Tshuaj insulator | Ntsia Hlau Ntaus | Lub Caij Nplooj Hlav Washer | |
|---|---|---|---|---|
| Tej daim yuav tsum tau | 2 | 2 | 2 | 2 |
| Khoom | 60si2mna, 60SI2CRA | Kev Pab Txog Nylon 66 (PA66) | Qib5.6: 35 # | Ml08ai |
| Qhov loj | 4mm lossis 4.5mm tuab | UIC54, UIC60,50Kg Rail, 60kg Rail | 18.25x34x78mm | |
| Tsab ntawv | 42-47hrc 3 lab npaug yam tsis muaj kev tawg; Daim ntawv thov rau hom kev sib tw sib txawv | Quav: 1.3-1.45G / CM3 Tensile Lub zog: ntau dua lossis sib npaug nrog 4x108-3% 110Hrr | Lub zog tensile: ntau dua los yog sib npaug rau 500mpa kom muaj zog: ntau dua lossis sib npaug zos: ntau dua lossis sib npaug ntawm 20% txias rau kev tawg | Tshuaj lom neeg tshuaj lom neeg (%): C: 0.05-0.10, mn: tsawg dua lossis sib npaug lossis sib npaug lossis sib npaug lossis sib npaug 0.035 |
TE Rail Elastic Clip Fasteners System
SKL Clip Rail Railer Fastening System
Kev tsis rau ib chav ntawm SKL Clip Rail Railer Fastening System
| Skl Tension Clip | SS35 NTSIA HLAU NTAU | Tiaj tshuab | Yas Dowel | Phau Ntawv Qhia Cov Phaj | Rail pad | |
|---|---|---|---|---|---|---|
| Tej daim yuav tsum tau | 2 | 2 | 2 | 2 | 2 | 1 |
| Khoom | 60SI2CRA, 60SI2CRA, 38SI7 | Qeb 4.6: Q235; Qib 56: 35 # Qib 8.8: 45 # | Q235 | HDPE, txhawb nylon 66 (PA66) | Kev Pab Txog Nylon 66 (PA66) | Eva, lossis roj hmab |
| Qhov loj | SKL1, SKL3, SKL12, SKL14 | M24 × 150 hli | Uls7 | Rau qhov sib txawv ntawm cov ntsia hlau ntsia hlau loj | UIC54, Uic60, 50kg Rail, 60KG Rail, thiab lwm qhov ntau thiab tsawg raws li tau xaj | |
| Tsab ntawv | Hardness: 42-47hrc 5 lab tsheb mus los tsis tau tawg. Txheem: DIN17221, GB / T1222 | Txheem: Iso898-1, Uic864-1 thiab NF F500-50 | Txheem: EN10025, E10139 | Txhawm rau ntxig rau hauv cov vaj tse pw | Cov khoom lag luam uas muaj. | |
KPO Scew Rail Rail Fastening System
Kev tsis rau ib chav ntawmKPO Scew Rail Rail Fastening System
| KPO Clip | Ntsia Hlau Ntaus | HS Bolt | Hex Txiv Ntseej | Ob Chav Chev Lub Caij Nplooj Hlav Dej Kub | Lub hauv paus phaj | |
|---|---|---|---|---|---|---|
| Tej daim yuav tsum tau | 2 | 2 | 4 | 2 | 2 | 1 |
| Khoom | Q235 | Qeb 4.6: Q235 Qib 5.6: 35 # Qib 8.8: 45 # | Qib 2012.6: Q235 Qib.6: 35 # Qib.8: 45 # | Qeb 5: 35 # Qib 8: 45 # | 65mn | Casting Hlau Qt500-7, Qt450-10, lossis Forging Cov Hlau Roj Hlau lossis Cov Hlau Nyias Hlau; |
| Hom; | KPO3, KPO6, KPO9 | M24 × 150 hli M24 × 160mm M24 × 180mm | HS26, HS32 | Raws li tau txiav txim | Raws li tau txiav txim | Uic54, Uic60, 50kg Rail, 60kg Rail, S49 hauv kev txiav txim loj |
| Tsab ntawv | Txheem: DIN5906 | Txheem: Iso898-1, Uic864-1 thiab NF F500-50 | Inch: 22mm lossis 24 hli. Ntev: 55mm, 65mm, 75mm, 90mm | Txheem: DIN985 | Txheem: Uic864-3 | Txheem: Uic864-6 |
Gnee RailTau dhau daim ntawv pov thawj ntawm CRCC hauv Suav teb thiab ISO9001 txawv teb chaws. Peb kuj lees txais cov kev xeem thib peb ntawm cov neeg .We muab cov kev pab sib txawv raws li cov neeg xav tau: dawb (roj); xim nrog cov xim; oxide dub; siv quav ciab; backuminizing; DHG; electroplating zinc thiab lwm tus muaj. dawb thiab dub oxide yog txhua yam muaj.
