↵Rail Deenik clip Fastening System

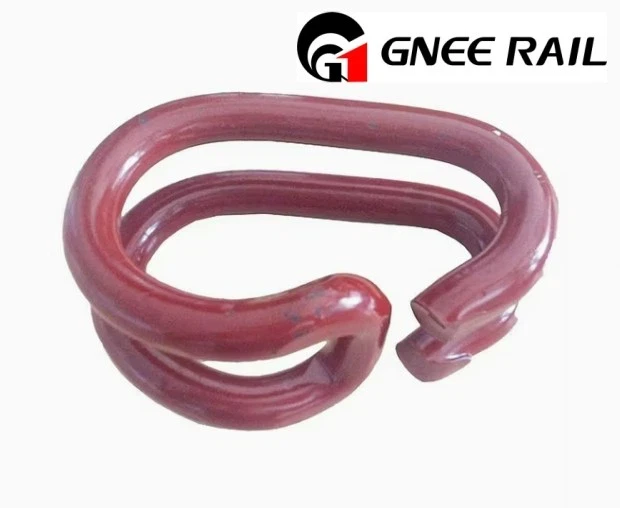

Lub Railway Deenik Clip yog ib qho tshwj xeeb elastic rail fastener tsim feem ntau rau Indian Railway tej yam kev mob, featuring ib tug txawv ob - voj tsim uas zoo li ib tug flattened "M" los yog omega (Ω) puab. Tsis zoo li cov pa ib zaug - khoov clips, qhov kev teeb tsa no tsim lub zog clamping los ntawm lub caij nplooj ntoos hlav symmetrical compression es tsis yog cantilever dabtsi yog khoov. Ameslikas tsim los rau cov ntoo pw tsaug zog daim ntaub ntawv, nws lub zog tsim muaj tshwj xeeb durability nyob rau hauv hnyav qag loads, huab kub variations, thiab siab tsheb ceev ceev thaum tswj kev yooj yim installation thiab txij nkawm.
Technical Specifications:
| Parameter | Standard Qib | Kawm Qib Siab | Qib hwm |
|---|---|---|---|
| Daim ntawv thov | General mainline | Hnyav freight kab | High -cov neeg caij tsheb ceev |
| Clamping Force | 9-11 kN | 11-13 KN | 10-12 kN |
| Khoom siv | Nruab nrab carbon steel | Silicon{0}}manganese hlau | Vanadium -microalloyed |
| Kev teeb tsa | Phau ntawv rau hammering | Cov cuab yeej hydraulic | Phau ntawv / Hydraulic hybrid |
| Qhov kub thiab txias | 0℃rau 60 degree | -10℃rau 65 degree | -15℃rau 70 degree |
| Cia siab rau lub neej | 8-10 xyoo | 6-8 xyoo | 10-12 xyoo |
Mechanical & Structural Perspective
Symmetrical Load Distribution: Lub dual -loop tsim tsim muaj zog sib npaug ntawm ob qho tib si rail ko taw lub xub pwg nyom, txo qis asymmetric hnav ntawm cov tsheb ciav hlau thiab cov khoom sib txuas.
Progressive Stiffness yam ntxwv: Cov khoom pov thawj ze rau -linear force- tus cwj pwm deflection thoob plaws hauv nws qhov kev ua haujlwm, tsis zoo li qhov kev nthuav dav ntawm ib qho - khoov tsim.
Txo Kev Nyuaj Siab Cuam Tshuam: Qhov nruam curvature thoob plaws hauv nws qhov ntev tshem tawm cov ntsiab lus khoov ntse uas cov kab nrib pleb feem ntau pib hauv cov kab lus sib dhos.
Inherent Resilience: tuaj yeem txhawb nqa ib ntus dhau - deflection (tshaj li kev ua haujlwm ib txwm muaj) yam tsis muaj deformation mus tas li lossis kev ua haujlwm tsis zoo.
Kev Ua Haujlwm Kev Pom Zoo
- Kev hloov pauv huab cua: Ua kom muaj kev ua tau zoo ib yam thoob plaws Is Nrias teb qhov kub thiab txias spectrum los ntawm ze - khov thaj tsam Himalayan mus rau 50℃+ suab puam tej yam kev mob.
- Debris Tolerance: Qhov qhib - lub voj voog tsim tso cai rau cov khoom siv hluav taws xob thiab cov khoom paug ib puag ncig kom dhau los ntawm ntau dua li tsis sib xyaw hauv cov chaw ua haujlwm tseem ceeb.
- Kev vibration Damping: Muab kev ua haujlwm siab -frequency vibration attenuation tshwj xeeb tshaj yog muaj txiaj ntsig zoo rau cov kev sib koom ua ke uas tseem muaj nyob hauv qee thaj chaw hauv network.
- Longitudinal Restraint: Muaj kev tiv thaiv zoo tshaj plaws rau kev tsheb ciav hlau nkag ntawm gradients piv rau ntau cov pa fastening systems ntawm qhov loj me.
