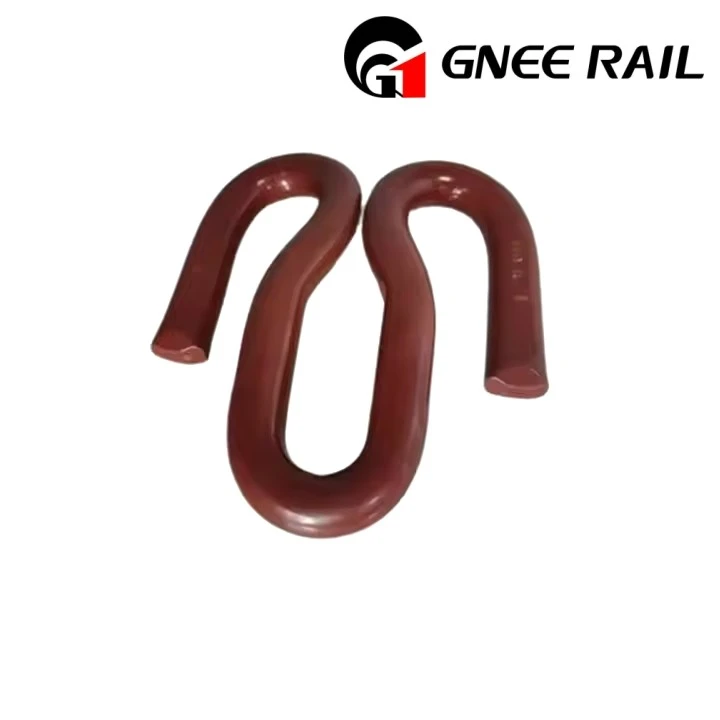

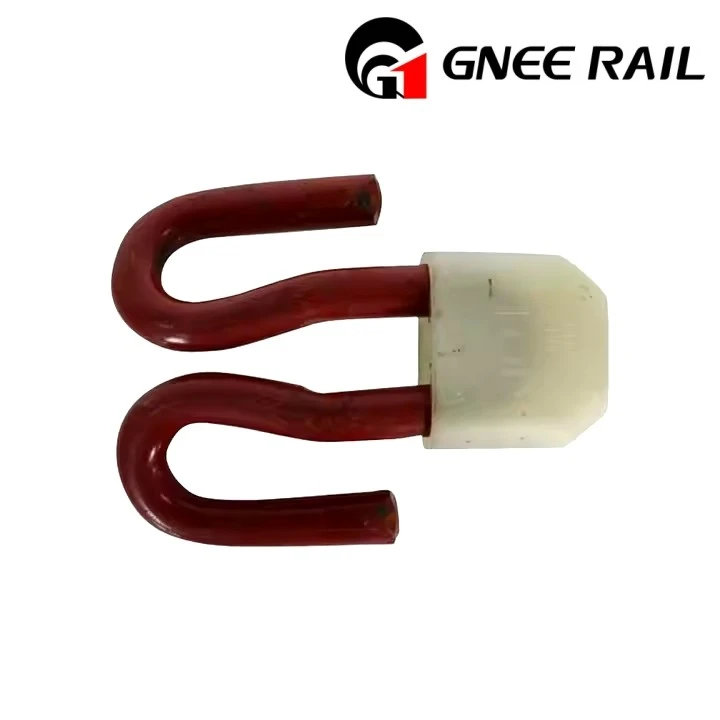

Track Fast Clips 1502
Pandrol's Fast Clip system yog dav suav hais tias yog ib qho tshiab tshaj plaws hauv kev tsheb ciav hlau fastening technology. GNEE Rail's Rail Fast Clip 1502 muab lub siab-elasticity, boltless tov, xa cov kev co zoo heev, kev ruaj ntseg, thiab kav ntev rau kev sib txuas ntawm txoj kev tsheb ciav hlau mus rau pw tsaug zog. Qhov system no txhim kho kev txhim kho kev tsim kho kom zoo thaum txo tus nqi kho. Peb kuj muab ntau yam ceev clips, suav nrog Rail Fast Clip 16, 1500, 1501, 1502, 1306, 1508, 1504, 1600, thiab 1605, nrog rau cov tshuab xws li Pandrol E Clip, SKL Clip, KPO Clamp, Nabla Clip, thiab Deenik Clip. Tag nrho cov khoom ua raws li cov qauv thoob ntiaj teb thiab tuaj yeem ua raws. Tiv tauj peb rau kev nug!
Taug qab Fast Clip system specification
| Tsis muaj. | Yam khoom | Performance Index |
| 1 | Applied rail hom | GB txheem 60kg steel rail |
| 2 | Rail ntsuas | 14 35mm |
| 3 | Rail hauv qab nqes hav | 1:40 rail hauv qab txoj kab nqes yog muab tso rau ntawm railway sleeper |
| 4 | Longitudinal tsis kam ntawm rails | Nyob rau hauv dav dav, lub longitudinal tsis kam ntawm txhua txheej ntawm rail fastener thiab cov ntsia hlau loj dua 9kN; |
| 5 | Elasticity ntawm rail fastening system | Cov rail ncoo muaj qhov ruaj khov ntawm 50 txog 70 kN / mm. |
| 6 | Kev ua haujlwm qaug zog | Tom qab 3 lab lub voj voog, lub kaw lus fastener tsis muaj kev puas tsuaj, thiab lub buckle siab hloov yog tsawg dua 20%; qhov kev ncua ntev ntawm kev hloov tsheb ciav hlau yog tsawg dua 20%; qhov static stiffness ntawm kev sib koom ua ke hloov yog tsawg dua 25%. |
| 7 | Rwb thaiv tsev tsis kam | Lub kaw lus fastener raug kuaj raws li EN 13146-5, thiab cov rwb thaiv tsev ntawm ob txoj hlua yog ntau dua 5kΩ. |
| 8 | Ib puag ncig hnyav | Lub kaw lus fastener tuaj yeem ua tiav nrog cov cuab yeej tshem tawm ntawm phau ntawv tom qab 300h ntsev tsuag tshuaj ntsuam tau piav qhia hauv EN 13146-6. |
| 9 | Kev kho tus nqi ntawm sab laug thiab sab xis ntawm txoj kev tsheb ciav hlau | Kev hloov ntawm sab laug thiab sab xis txoj hauj lwm ntawm ib leeg-strand rail: -4 ~ +2 hli; Rail gauge hloov kho: -8 ~ +4mm, kev hloov kho qib yog 1mm. |
| 10 | Rail qhov siab txoj hauj lwm | Qhov kev hloov kho yog 0mm. |
| 11 | Buckle siab thiab caij nplooj ntoos hlav ntau yam | FC1504 hom caij nplooj ntoos hlav bar: buckle siab yog 10kN, caij nplooj ntoos hlav ntau yog 12 hli; FC1306 hom caij nplooj ntoos hlav bar: buckle siab yog 3kN. |
| 12 | Rub tawm tsis kam ntawm cov khoom embedded | rub tsis kam ntawm lub rooj zaum hlau embedded hauv railway sleeper tsis tsawg dua 60kN. |
Taug qab Fast Clip 16 technical parameters
| Yam khoom No | Khoom siv | Txoj kab uas hla | Clip ntev | Clip dav | Qhov hnyav | HRC | Siab | Fatigue Test |
| E1,E2,E3 | 60 Si2 Mn | ø18 | 0.8 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | ||
| E1609 | 60 Si2 Mn | ø18 | 93±3 | 0.43 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | |
| E1809 | 60 Si2 Mn | ø18 | 104±3 | 0.62 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | |
| E1817 | 60 Si2 Mn | ø18 | 104±3 | 37.5±3.0 | 0.62 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so |
| E2001 | 60 Si2 Mn | ø18 | 0.6 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | ||
| E2007 | 60 Si2 Mn | ø18 | 105±5 | 38 max | 0.62 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so |
| E2009 | 60 Si2 Mn | ø18 | 106±3 | 37.5 | 0.65 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so |
| E2055 | 60 Si2 Mn | ø20 | 106±3 | 56.6±3.0 | 0.8 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so |
| E2056 | 60 Si2 Mn | ø20 | 106±3 | 56.6±3.0 | 0.8 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so |
| E2063 | 60 Si2 Mn | ø20 | 110.5 | 53.5 | 0.8 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so |
| PAB 309 | 60 Si2 Mn | ø19 | 130 | 0.91 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | |
| PAB 401 | 60 Si2 Mn | ø20 | 127±3 | 38.1±3.0 | 0.97 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so |
| PAB 601 | 60 Si2 Mn | ø19 | 0.8 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | ||
| PAB 85 | 60 Si2 Mn | ø19 | 88±3 | 0.8 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | |
| PAB 415 | 60 Si2 Mn | ø20 | 0.8 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | ||
| PAB 601 | 60 Si2 Mn | ø20 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | |||
| DI | 60 Si2 Mn | ø18 | 100±3 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | ||
| E18 | 60 Si2 Mn | ø18 | 100±3 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | ||
| E19 | 60 Si2 Mn | ø18 | 100±3 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | ||
| E20 | 60 Si2 Mn | ø18 | 100±3 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | ||
| SKL 1 | 60 Si2 Mn | ø13 | 133±2.3 | 0.48 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | |
| SKL 3 | 60 Si2 Mn | ø13 | 120±2 | 0.48 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | |
| SKL 12 | 60 Si2 Mn | ø13 | 0.53 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | ||
| SKL 14 | 60 Si2 Mn | ø13 | 155±2 | 0.53 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | |
| Fast Clip-1508 | 60 Si2 Mn | ø15 | 0.58 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | ||
| Fast clip-1501 | 60 Si2 Mn | ø15 | 0.58 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so | ||
| Fast Clip-16 | 60 Si2 Mn | ø16 | 0.6 | 44-48 | Ntau dua lossis sib npaug li 9.5KN | 5000000 zaug tsis so |
