↵Rail Nabla Clip Fastening System

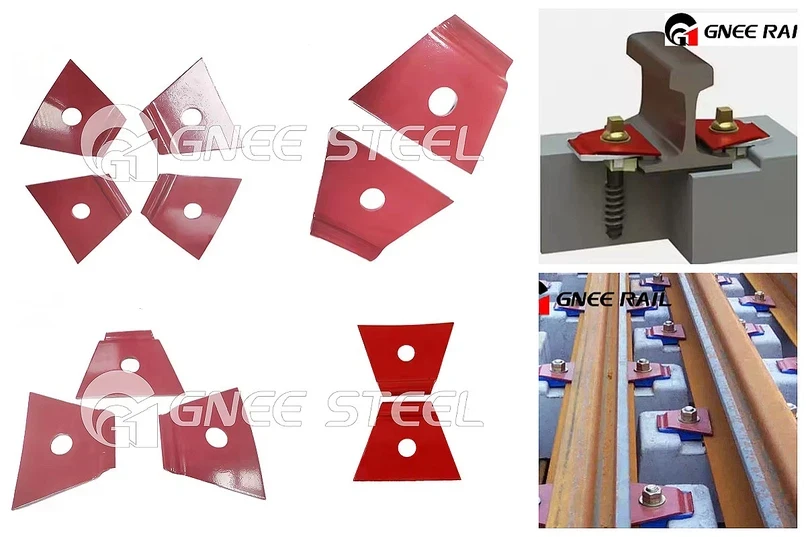

Rail Nabla clips, muaj npe rau lawv qhov txawv ntawm daim duab peb sab lossis kab pheeb ces kaum -zoo li (∇-} zoo li tus) profile, yog tshwj xeeb fastening Cheebtsam siv nyob rau hauv ncaj fixation rail systems. Lawv yog engineered los elastically clamp lub tsheb ciav hlau ko taw mus rau lub pob zeb los yog steel baseplate, muab kev tuav tswj tsis tu ncua, hluav taws xob rwb thaiv tsev, thiab kev co damping. Lawv cov qauv tsim tso cai rau kev tswj hwm ntsug, sab nraub qaum, thiab longitudinal rog, ua rau lawv tseem ceeb rau kev ruaj ntseg niaj hnub.
Technical Specifications:
| Qauv / Hom | Hom Clamping Force (kN) | Thawj daim ntawv thov Scene | Cov khoom siv / kev kho mob | Cov yam ntxwv tseem ceeb / Insulator Hom |
|---|---|---|---|---|
| Vossloh W 14 | 14 - 15 | High - tsheb ciav hlau ceev, Metro systems | Caij nplooj ntoos hlav steel, Zn flake txheej | Ua ke nrog GRP (iav- siv zog polyamide) insulator; adjustable ntiv taw load. |
| Pandrol Fastclip | 12 - 15 (configurable) | Mainline & Heavy nqa | SAE 5160 steel, epoxy txheej | Tus kheej- xauv, ob- qhov system nrog lub xub pwg hlau cam thiab nyias nyias. |
| Nabla SFC | 18 - 20 | Hnyav- thauj khoom thauj, Siab- tonsage kab | Alloy caij nplooj ntoos hlav steel, Dacromet | Siab - tuav quab yuam; feem ntau siv nrog polyurethane insulator rau txhim kho damping. |
| Stedef VIPA | 13 - 14 | Lub teeb rail, Tram systems | Stainless hlau (AISI 301) | Corrosion-resistant; integrated insulating ko taw rau kev sib dhos yooj yim. |
| Generic Tsawg-Profile | 9 - 11 | Depot lem, Industrial sidings | Galvanized carbon hlau | Compact tsim rau qhov chaw tshem tawm tsawg; yooj yim polyamide insulator. |
Daim ntawv thov Scenario
High-Speed Rail Corridors:Deployed nyob rau hauv slab lem thiab choj decks kom muaj meej rail sib dhos thiab ntsuas nyob rau hauv dynamic loads ntawm high speeds.
Hnyav -Haul Freight Lines:Xaiv rau lawv qhov siab clamping quab yuam thiab tsis kam mus rau kev tsheb ciav hlau nkag mus rau hauv cov seem nqa cov qag siab loads thiab nquag khiav tsheb.
Kev Ua Haujlwm Tshwj Xeeb:Siv nyob rau hauv txoj kev taug kev yooj yim xws li turnouts (switches) thiab crossings, qhov twg yuav tsum tau muaj kev txwv tsis pub sib xws thiab txhim khu kev qha ntawm ntau yam baseplates.
Kev Saib Xyuas & Kev Pom Kev Ua Haujlwm
- Yam tsawg kawg nkaus tu:Tsim los ua ib qho "haum-thiab-tsis nco qab" tivthaiv, tsis tas yuav tsum tau ua kom tsis tu ncua raws sijhawm ib txwm muaj, tsis zoo li qee qhov bolted fastenings.
- Quick Unit Hloov:Cov clips puas tuaj yeem hloov tau ib tus zuj zus yam tsis muaj kev cuam tshuam cov clips nyob ib sab lossis txoj kev tsheb ciav hlau, siv cov cuab yeej tshwj xeeb hauv kev teeb tsa / tshem tawm.
- Lub neej ua haujlwm ntev:Feem ntau muaj kev pab cuam lub neej ntawm 25-30 xyoo, cuam tshuam rau kev txhim kho kom raug, load spectrum, thiab ib puag ncig (xws li, corrosion, UV raug rau saum av).
