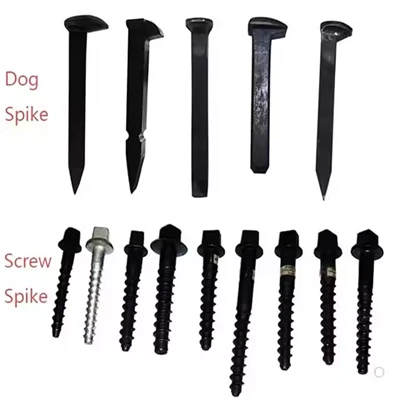

↵Rail Screw spike Fastening System
Lub Screw Spike sawv cev rau kev hloov kho txhua yam dhau ntawm cov kab mob dog dig. Nws hais txog cov kev txwv tseem ceeb ntawm kev sib txhuam-raws li fasteners los ntawm kev qhia anruam, zoo mechanical interlocknrog cov khoom siv pw tsaug zog. Tsis zoo li cov ntsia hlau ntsia hlau uas tuaj yeem ua haujlwm xoob hauv kev vibration, lub hau ntswj ntsia hlau, thaum muaj zog torque, nquag rub nws tus kheej mus rau hauv cov ntoo lossis cov khoom sib xyaw, tsim ua ntej -loaded clamping quab yuam.
Technical Specifications:
| Analysis Angle | Technical & Performance Specifications | Strategic Implication & Value Proposition |
|---|---|---|
| 1. Mechanical Design & Kev ncaj ncees | Xov Design:Coarse, square- txiav lag xov (4-5 TPI) Lub taub hau:Forged square / hex taub hau rau wrenching Point:Gimlet (tus kheej- tho txawv) cov lus qhia Khoom siv:Medium Carbon Steel (xws li, 1045), quenched & Tempered |
Engineering Lub Hom Phiaj:Lub square xov profile maximizes ntoo fiber ntau kev koom tes thiab tsis kam mus vibrational loosening. Lub tshav kub- kho shank muab lub hauv paus tawv uas tiv thaiv shear quab yuam, thaum tus kheej - tho txawv taw tes tshem tawm qhov xav tau ua ntej - tho hauv ntoo feem ntau, txhim kho kev txhim kho. |
| 2. Kev ua tau zoo & Durability | Rub -Tawm Tawm:25-40 kN (vs . 8-15 kN rau dev spike) Clamping quab yuam:Tsim los ntawm kev teeb tsa torque (300-450 Nm) Kev tiv thaiv corrosion:Kub-Dip Galvanized lossis Epoxy Coated Lub neej ua haujlwm:20-30 xyoo ntawm kev kho ntoo |
Kev Ua Haujlwm Guarantee:Qhov kom muaj nuj nqis rub- tawm lub zog muab cov engineers nrog tus nqi tsim nyog rau kev ntsuas kev ruaj ntseg. Lub zog torque tau hais tseg -rau- quab yuam kev sib raug zoo ua kom paub tseeb, kev ua tau zoo ib yam thoob plaws txhua qhov kev teeb tsa, yog qhov tseem ceeb rau kev tswj xyuas qhov tseeb geometry. |
| 3. Daim Ntawv Thov Kev Lag Luam & TCO | Tus nqi tsev:2-3x ntawm tus qauv dog spike Tus nqi installation:Siab dua vim yog ob- txheej txheem theem (set & torque) Maintenance Interval:2-4x ntev dua li tus dev taug kev Hom tsis ua haujlwm:Predictable, feem ntau reusable yog tias tsis puas |
Tag Nrho Cov Nqi Them Nqi:Thaum tus nqi them ua ntej yog siab dua, lubua kom ncua kev txij nkawmthiabtxo kev pheej hmoo ntawm kev ntsuas - cuam tshuam txog kev qeeb lossis derailmentsnyob rau hauv cov cheeb tsam tseem ceeb xa cov ROI yuam. Nws hloov ntau zaus, qis- kev cuam tshuam tus nqi mus rau qhov tsis tshua muaj, tau npaj tseg. |
Vim li cas thiaj xaiv Screw Spike?
Curvature & Qib Tswj:Ntawm cov nkhaus ntse thiab cov qib siab uas cov lateral thiab longitudinal quab yuam yog heev. Nws lub tshuab ntsuas phoo yog qhov tseem ceeb rau kev tiv thaiv qhov ntsuas qhov dav thiab kev tsheb ciav hlau nkag.
Hnyav-Haul Timber Track:Hauv cov mining thiab cov kev pab cuam txoj hauv kev uas cov ntoo pw tsaug zog yog siv tab sis axle loads tshaj 25 tons. Nws muab cov kev ruaj ntseg tsim nyog los tiv thaiv kev degradation.
Composite & Hardwood Sleeper Applications:Rau cov niaj hnub engineered pw tsaug zog qhov twg nws xov daim ntawv yog tsim los ua kom zoo nrog ntom, tsis yog - cov khoom siv ib txwm tsis sib cais.
Critical Infrastructure Junctions:Hauv thaj chaw hloov chaw, kev hla, thiab ntawm cov ntoo -dawb txuas hniav uas qhov kev ruaj ntseg yog qhov tseem ceeb thiab kev saib xyuas yog qhov nyuaj lossis kim heev.
Screw Spike yog qhov kev xaiv ntse rau yav tom ntej -xav cov engineers tswj cov ntoo lossis cov khoom sib xyaw-raws li kev tsim kho vaj tse.Nws sawv cev rau kev hloov pauv los ntawm kev rov ua haujlwm, kev ua haujlwm- kev saib xyuas hnyav mus rau qhov ua tau zoo, tsim kho- lub tswv yim fastening. Los ntawm kev nqis peev hauv cov neeg kho tshuab qhov tseeb ntawm cov ntsia hlau spikes, cov neeg ua haujlwm ruaj ntseg tsis yog txoj kev tsheb ciav hlau xwb, tab sis kuj muaj kev ua tau zoo, txhim kho kev nyab xeeb, thiab tus nqi qis dua ntawm cov tswv cuab rau lawv cov cuab tam muaj txiaj ntsig.
