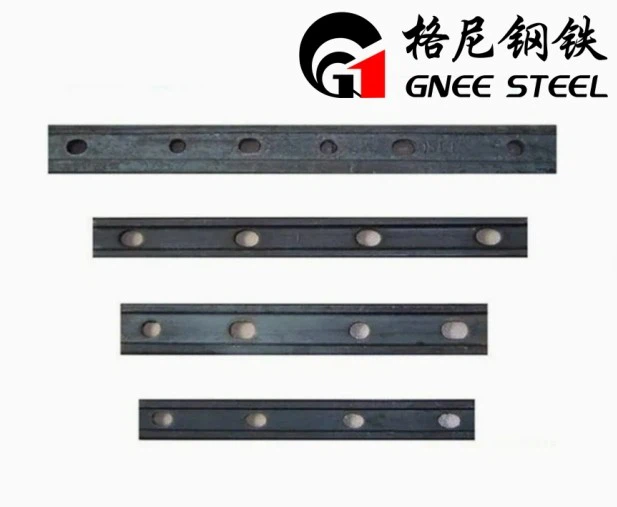

DIN Standard Rail Splice Bar
Lub DIN Standard Rail Splice Bar, tseem hu ua DIN Rail Fishplate, DIN Rail Joint Phaj, DIN Track Splice Phaj, DIN Rail Connector Bar, thiab DIN Splice Phaj, yog ib qho tseem ceeb hauv kev tsheb ciav hlau tsim los txuas ob ntu ntawm qhov txuas. tsheb ciav hlau. Tsim nyob rau hauv raws li cov qauv tsim los ntawm Deutsches Institut für Normung (DIN), cov splice tuav kom muaj kev ntseeg siab thiab ua haujlwm zoo hauv ntau yam kev siv tsheb ciav hlau. Lawv cov kev tsim kho muaj zog tso cai rau kev ruaj ntseg kev sib txuas uas tswj cov kev sib dhos thiab kev ruaj ntseg, ua rau muaj txiaj ntsig zoo rau kev nyab xeeb thiab kev ua haujlwm ntawm kev thauj mus los. GNEE Rail, peb muab tag nrho array ntawm railway fishplates uas ua raws li American, UIC, German, Australian, thiab African qauv. Customization xaiv muaj los ua kom tau raws li koj xav tau. Tiv tauj peb hnub no kom paub ntau ntxiv!
DIN Standard Rail Splice Bar specification
|
DIN Standard Railway Ntses Phaj |
Applicative Steel Rail |
||||||||
|
Specification |
Qhov hnyav KG / m |
Loj |
Khoom siv |
Steel Rail Specification |
Steel Rail Piece Nyhav Kg / m |
Txuj |
|||
|
a |
b |
c |
x |
||||||
|
y |
|||||||||
|
FIJ 30 |
9.6 |
70.1 |
15.9 |
20.6 |
4.33 |
Qib 700 |
S30 |
30.03 |
DIN5901 |
|
4.33 |
|||||||||
|
SIB 133 |
12.7 |
90.5 |
18 |
20 |
4 |
Qib 700 |
S33 |
33.47 |
DIN5901 |
|
4 |
|||||||||
|
TSI 41 |
15.7 |
94 |
20 |
31 |
3 |
Qib 700 |
S41 |
41.38 |
DIN5951 |
|
TSI 49 |
3 |
S49 |
49.43 |
||||||
DIN Standard Rail Splice Bar tshuaj muaj pes tsawg leeg
|
Yam khoom |
C |
Mn |
Si |
S |
P |
|
Suav Standard Rail Joint |
0.52-0.60 |
0.50-0.80 |
0.17-0.37 |
Tsawg dua lossis sib npaug rau 0.035 |
Tsawg dua lossis sib npaug rau 0.035 |
|
AREMA txheem Rail Joint |
0.35-0.60 |
Tsawg dua los yog sib npaug rau 1.2 |
- |
Tsawg dua lossis sib npaug rau 0.040 |
Tsawg dua lossis sib npaug rau 0.050 |
|
BS Standard Rail Joint |
0.27-0.48 |
Tsawg dua lossis sib npaug rau 0.94 |
0.38 |
Tsawg dua lossis sib npaug rau 0.058 |
Tsawg dua lossis sib npaug rau 0.058 |
|
UIC (International Union of Railways) Standard Rail Joint |
0.37-0.44 |
0.50-0.80 |
0.17-0.37 |
Tsawg dua lossis sib npaug rau 0.035 |
Tsawg dua lossis sib npaug rau 0.035 |
|
DIN Standard Rail Joint (Fl{0}} Fl20, Q235) |
0.14-0.22 |
0.30-0.65 |
Tsawg dua lossis sib npaug rau 0.30 |
Tsawg dua lossis sib npaug rau 0.050 |
Tsawg dua lossis sib npaug rau 0.045 |
|
DIN Standard Rail Joint (Fl{0}} Fl41-54, Q295) |
0.52-0.60 |
0.50-0.80 |
0.17-0.37 |
Tsawg dua lossis sib npaug rau 0.035 |
Tsawg dua lossis sib npaug rau 0.035 |
|
African Rail Joint |
0.47-0.55 |
0.50-0.80 |
0.17-0.37 |
Tsawg dua lossis sib npaug rau 0.035 |
Tsawg dua lossis sib npaug rau 0.035 |
DIN Standard Rail Splice Bar Rhiav
Cim npe nrov: Tuam Tshoj Standard rail splice bar manufacturers, lwm tus neeg, Hoobkas
