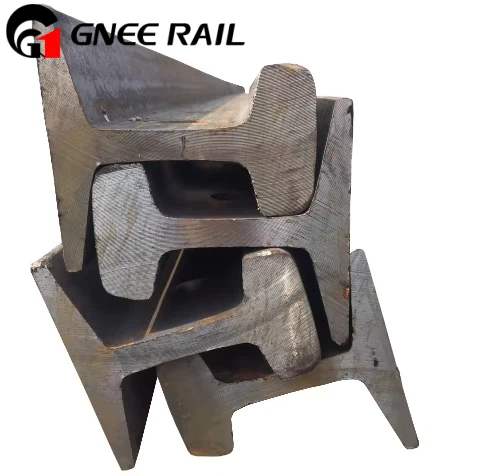

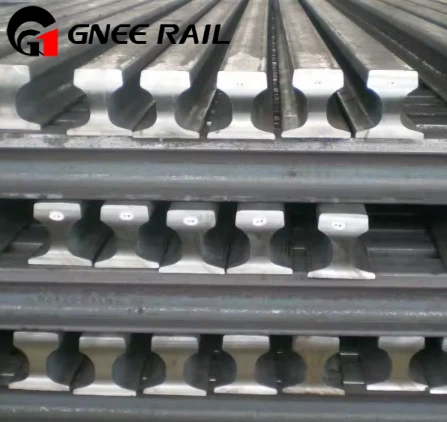

12 LB. ASCE Rail
12 LB. ASCE Rail yog ib hom kev tsheb ciav hlau taug qab tus qauv tsim los ntawm American Society of Civil Engineers (ASCE). Lo lus "ASCE" sawv cev rau American Society of Civil Engineers. ASCE Rail feem ntau siv nyob rau hauv ntau yam kev tsheb ciav hlau thiab tsheb ciav hlau thoob plaws Tebchaws Meskas.
Lub npe "12LB." hais txog qhov hnyav ntawm txoj kev tsheb ciav hlau ib yard, nrog "LB." sawv rau phaus. Yog li ntawd, 12 LB. ASCE Rail hnyav 12 phaus ib yard.
ASCE Rail feem ntau siv nyob rau hauv lub teeb rail systems, industrial lem, thiab lwm yam railway kab vim nws haum rau nruab nrab loads thiab qis ceev yuav tsum tau, muab txaus siab rau kev ua tau zoo thiab kev cia siab rau thaum ua nqi-zoo.
GNEE Rail yog lub chaw tsim khoom ntawm cov ntsia hlau uas ua tau raws li ASCE cov qauv, ncua ntawm ASCE12 txog ASCE85. Yog li ntawd, peb tuaj yeem tsim txhua hom kev tsheb ciav hlau uas koj xav tau. Ntxiv mus, peb muab cov kev pabcuam customization raws li qhov tshwj xeeb xav tau ntawm peb cov neeg siv khoom. Yog tias koj muaj cov cai tshwj xeeb, thov tsis txhob yig tiv tauj peb.
daim duab
Specification
Cov lus hauv qab no qhia meej meej txog 12LB. ASCE Rail hom, ntu tus lej, qhov hnyav nominal, tus qauv ntev, tus qauv drilling specifications, splice bar ntev thiab qhov hnyav, nrog rau kev taug qab ntsia liaj qhov rooj specifications.
| Hom Rail | Tshooj Naj Npawb | Nominal Nyhav (lbs/yd) | Txheem Length (ft) | Standard Drilling | Splice Bar Length | Splice Bar Nyhav (lbs / pr) | Taug qab Bolt |
|---|---|---|---|---|---|---|---|
| 12 UAS | 1240 | 12 | 30 | 2" X 4" 5/8" diam | 16-1/8" | 2 lbs / pr nrog kho vajtse: 3 lbs / pr | 1/2"X 1-3/4" |
Qhov ntev
|
Qhov hnyav |
Hom |
Dimensions nyob rau hauv nti | ||||||||||
|
|
|
HT |
BW |
HW |
W |
HD |
FD |
BD |
E |
|||
|
12 lb. |
ASCE |
2 |
2 |
1 |
3/16 |
9/16 |
1 3/32 |
11/32 |
57/64 |
|||
Steel Rails Supplier
