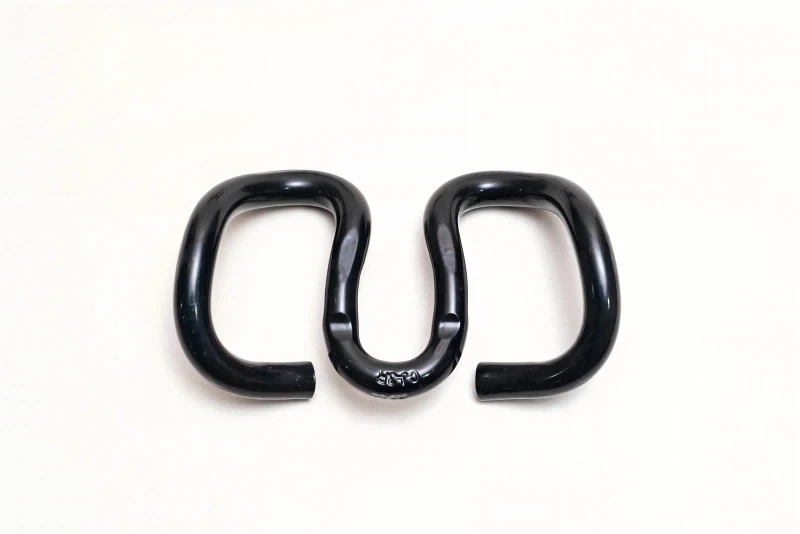

Cov Ntsiab Lus Tshaj Tawm ntawm Cov Railway SKL Clips
| Tus qauv | Hlau Hlau | Khoom Siv Khoom | Hardness Ntau Yam | Clamping yuam | Qaug zog lub neej | Nto Kho | Qhov hnyav ib thooj |
|---|---|---|---|---|---|---|---|
| Skl 1 | DaC3mm | 60si2Cra | 42-47 HRC | 8-10 kn | Ntau dua los yog sib npaug rau 3.0 × 10⁶ mus | Kub - dip galvanizing (ntau dua los yog sib npaug rau 80μm) | 0.48 kg |
| Tus ncej 3 | DaC3mm | 60si2Cra | 42-47 HRC | 8-10 kn | Ntau dua los yog sib npaug rau 3.0 × 10⁶ mus | Kub - dip galvanizing (ntau dua los yog sib npaug rau 80μm) | 0.48 kg |
| Skl 12 | DaC3mm | 38SI7 | 40-45 hrc | 7-9 kn | Ntau dua los yog sib npaug rau 2.5 × 10⁶ mus | Electro - galvanizing (ntau dua los yog sib npaug rau 20μm) | 0.53 kg |
| Toj 14 | DaC3mm | 60SI2CRA / 38SI7 | 42-47 HRC | 9-11 Kn | Ntau dua los yog sib npaug rau 3.5 × 10⁶ mus | Dacromet (ntau dua los yog sib npaug rau 12μm) | 0.53 kg |
| Skl b 15 | φ /mm | 55simnvb | 44-49 hrc | 12-14 kn | Ntau dua los yog sib npaug rau 4.0 × 10⁶ mus | Tej hub txheej (ntau dua los yog sib npaug rau 25μm) | 0.65 kg |
Daim Ntawv Thov Kev Ua Si txuam ntawm Kev Railway SKL Clips
| Tus qauv | Siv tau cov hom tsheb ciav hlau | Sib phim cov ciav hlau | Max qag load | Ib puag ncig kev yoog | Kev ua raws cai |
|---|---|---|---|---|---|
| Skl 1 / skl 3 | Cheeb tsam cheeb tsam tsheb ciav hlau | Uic 54, 38-50 kg / M rail | Tsawg dua los yog sib npaug rau 20 t | General Sab Nraum Zoov (Anti - xeb ntawm kub - dip galvanizing) | DIN 17221, GB / T 1222 |
| Skl 12 | Nroog Lub Nroog Tsheb Hlau / Tram | 22-38 KG / M Teeb Rail | Tsawg dua los yog sib npaug rau 8 t | Tsaus nroog thaj chaw (cov lus tseem ceeb anti - corrosion) | Rau 13481-3, TB / T 3395.1 |
| Toj 14 | Freight Mainline Railway | Uic 60, 43-50 kg / M tsheb nqaj hlau | Tsawg dua los yog sib npaug rau 25 t | High - kev co cov kab thauj khoom (hnav - resistant) | Arema 10, BS 970 |
| Skl b 15 | Hnyav - haul ciav hlau | 50-60 kg / m hnyav rail | Tsawg dua los yog sib npaug rau 30 t | Kev ua haujlwm hnyav (muaj zog siab) | TB / T 3562, D |
